SCR-2P-6G

High Accuracy Automatic Down & Feather Filling Machine

Сравнить
In stock N/A , .

Description

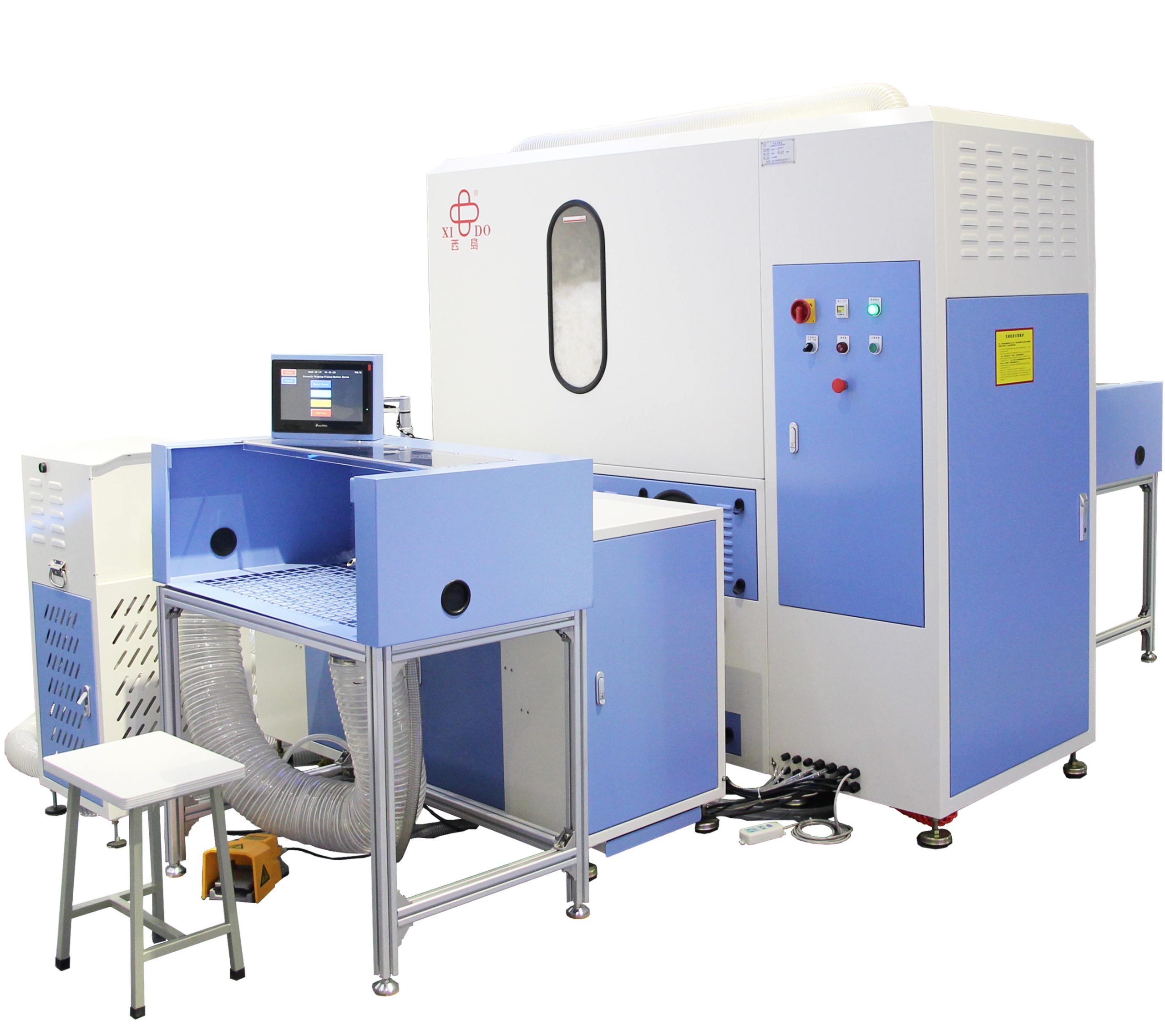

The New Generation of High-precision Dual-port Machine. Automatic Down&Feather Filling Machine SCR-2P-6G has more functions, easier to operate. The machine is equipped with the electric quantitative scales. Set the weights you want and the scales will give you the weight with high quantitative precision. The highest one reaches 0.01g.

Quality Details

Specialized, Dedicated, Serves Attentively

Aviation Connector

Selected special aviation connector, easy to install, strong capacity of turbulence resistance, reliable and durable, stable signal transmitting guaranteed.

Acrylic Box

Special acrylic box, eliminate electrostatic effect, weighing accuracy is high.

Drive Shaft Zinc Plating-yellow

High hardness, wear resistance, durable, not easy to rust.

Operater Desk

Aluminum alloy filling operater desk, supporting feet adjustable, tightness design, refused to shake.

Suggested Price(USD) Inquiry Power 1.5kW
Voltage 220V 50/60Hz Minimum pressure required 0.58Mpa
Volume of tank 0.6m³ Main Body Box Size(m) 2.12×0.88×2
Weight Box Size(m) 1.5X0.55X0.9 Filling Desk Size(m) 1X0.6X1.1
Minimum transport channel(m) 1X2.1 Place the smallest area(m) 5x3x2.1
Recommend placing area(m) 6x4x2.1 N.W/G.W 650/1000KG
Filling Materials Down 70%-90% Filling Port 2
Down Storage Volume(kg) 10~12KG Single charge down weight 0.1-3g/0.1-7g/0.1-30g
Weighing error ≤0.05g Cycle Number 3
Weight Range(g) 0.1-3g/0.1-7g/0.1-30g Accuracy Grade(g) 0.01
Filling Speed(g/s) 1~8 Pressure Monitoring System
Humidification system Multiple nozzle size(mm) 16 or 19
Minimum air volume supply 0.8m³/min
