Description

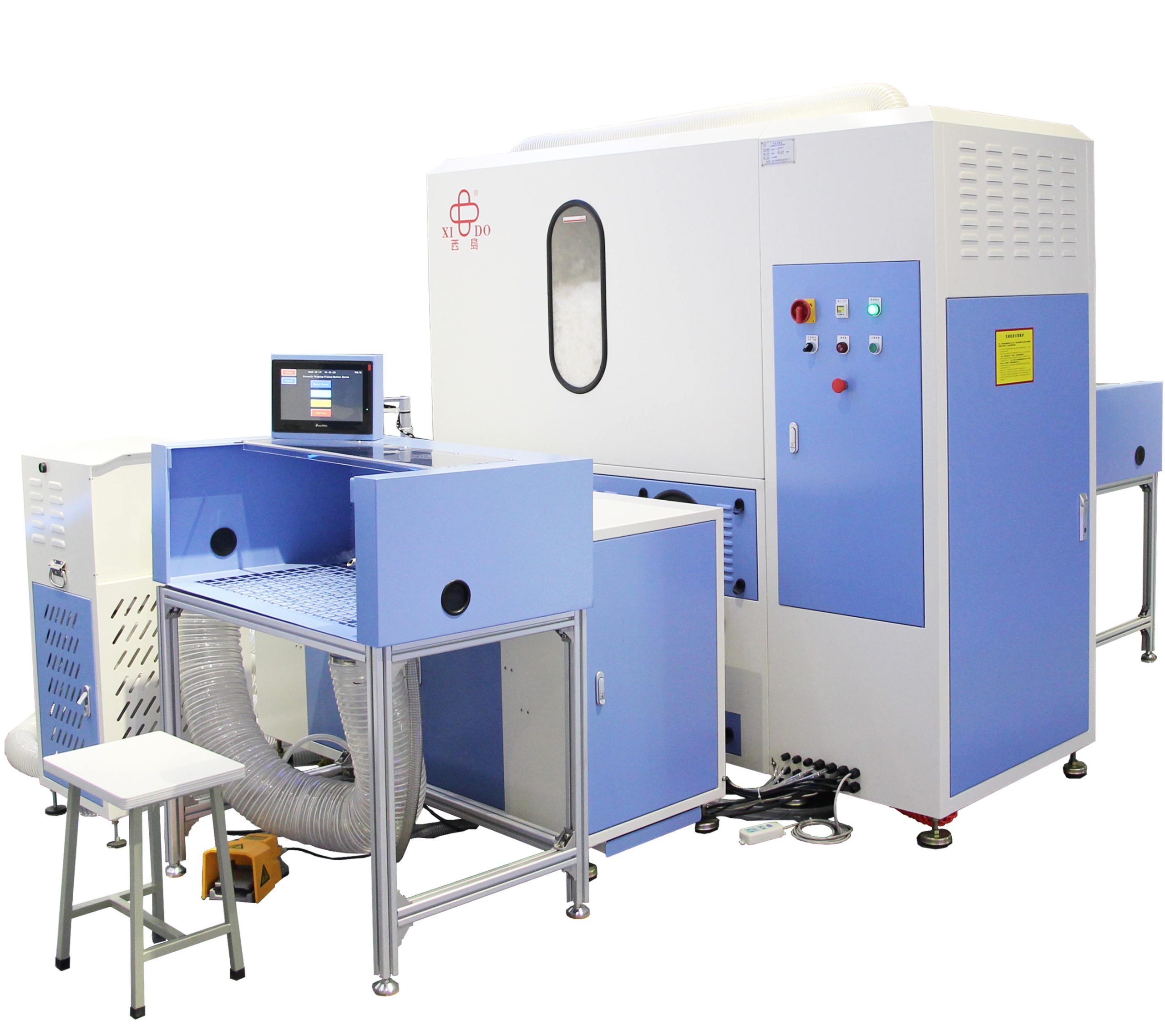

The New Generation of High-precision Dual-port Machine. Automatic Down&Feather Filling Machine SCR-2P-6G has more functions, easier to operate. The machine is equipped with the electric quantitative scales. Set the weights you want and the scales will give you the weight with high quantitative precision. The highest one reaches 0.01g.
Quality Details
Specialized, Dedicated, Serves Attentively
Aviation Connector
Selected special aviation connector, easy to install, strong capacity of turbulence resistance, reliable and durable, stable signal transmitting guaranteed.
Acrylic Box
Special acrylic box, eliminate electrostatic effect, weighing accuracy is high.
Drive Shaft Zinc Plating-yellow
High hardness, wear resistance, durable, not easy to rust.
Operater Desk
Aluminum alloy filling operater desk, supporting feet adjustable, tightness design, refused to shake.
Parameters Details
| Suggested Price(USD) | Inquiry | Power | 1.5kW |
|---|---|---|---|
| Voltage | 220V 50/60Hz | Minimum pressure required | 0.58Mpa |
| Volume of tank | 0.6m³ | Main Body Box Size(m) | 2.12×0.88×2 |
| Weight Box Size(m) | 1.5X0.55X0.9 | Filling Desk Size(m) | 1X0.6X1.1 |
| Minimum transport channel(m) | 1X2.1 | Place the smallest area(m) | 5x3x2.1 |
| Recommend placing area(m) | 6x4x2.1 | N.W/G.W | 650/1000KG |
| Filling Materials | Down 70%-90% | Filling Port | 2 |
| Down Storage Volume(kg) | 10~12KG | Single charge down weight | 0.1-3g/0.1-7g/0.1-30g |
| Weighing error | ≤0.05g | Cycle Number | 3 |
| Weight Range(g) | 0.1-3g/0.1-7g/0.1-30g | Accuracy Grade(g) | 0.01 |
| Filling Speed(g/s) | 1~8 | Pressure Monitoring System | √ |
| Humidification system | √ | Multiple nozzle size(mm) | 16 or 19 |
| Minimum air volume supply | 0.8m³/min |
